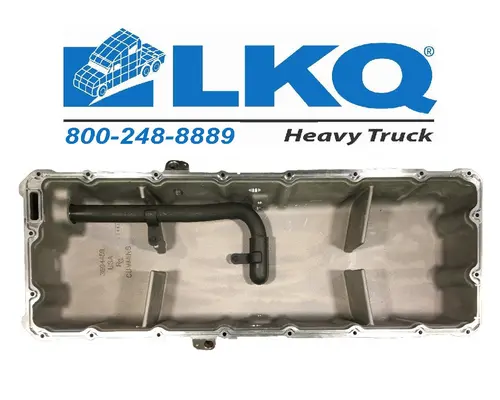

Oil Pan
$1,000.00
OEM #: 3684708
MATERIAL: CAST ALUMINUM
SUMP LOCATION: FULL SUMP
CASTING #: N/A
USED USED GTO OEM CUMMINS QSX15 )8761) CAST ALUMINUM, FULL SUMP OIL PAN 3684708 SUMP LOCATION: FULL SUMP MATERIAL: CAST ALUMINUM HIGH OIL PAN CAPACITY: 83.3 L (22.0 GAL) LOW OIL PAN CAPACITY: 75.7 L (20.0 GAL) ENGINE CAPACITY: 90.8 L (24 GAL.) ANGULARITY LIMITS: 45 DEGREES FRONT DOWN 45 DEGREES REAR DOWN 45 DEGREES FUEL PUMP DOWN 45 DEGREES EXHAUST DOWN DRAIN LOCATION (M27 X 2 STRAIGHT THREAD O RING): SIDE
Sold by: LKQ Evans Heavy Truck PartsLocation: Athens GA
$550.00
OEM #: 4386810
MATERIAL: STAMPED STEEL
SUMP LOCATION: FRONT
USED USED GTO CUMMINS QSX15 (3961) ENGINE OIL PAN 4386810 SUMP LOCATION: FRONT MATERIAL: STAMPED STEEL HIGH OIL PAN CAPACITY: 45.4 L (12.0 GAL) LOW OIL PAN CAPACITY: 37.9 L (10.0 GAL) ENGINE CAPACITY: 53 L (13 GAL) ANGULARITY LIMITS: 45 DEGREES FRONT DOWN 33 DEGREES REAR DOWN 45 DEGREES FUEL PUMP DOWN 31 DEGREES EXHAUST DOWN DRAIN LOCATION (M27 X 2 STRAIGHT THREAD O RING): SIDE NO DRAIN PROVISION ON SHALLOW SUMP
CASTING #: 3689027
USED USED GTO OEM CUMMINS QSX15 (3961) ENGINE OIL PAN 4386810 OIL PAN SUMP LOCATION: FRONT MATERIAL: STAMPED STEEL HIGH OIL PAN CAPACITY: 45.4 L (12.0 GAL) LOW OIL PAN CAPACITY: 37.9 L (10.0 GAL) ENGINE CAPACITY: 53 L (13 GAL) ANGULARITY LIMITS: 45 DEGREES FRONT DOWN 33 DEGREES REAR DOWN 45 DEGREES FUEL PUMP DOWN 31 DEGREES EXHAUST DOWN DRAIN LOCATION (M27 X 2 STRAIGHT THREAD O RING): SIDE
USED USED GTO CUMMINS QSX15 (5428) ENGINE OIL PAN 4386810 SUMP LOCATION: FRONT MATERIAL: STAMPED STEEL HIGH OIL PAN CAPACITY: 45.4 L (12.0 GAL) LOW OIL PAN CAPACITY: 37.9 L (10.0 GAL) ENGINE CAPACITY: 53 L (13 GAL) ANGULARITY LIMITS: 45 DEGREES FRONT DOWN 33 DEGREES REAR DOWN 45 DEGREES FUEL PUMP DOWN 31 DEGREES EXHAUST DOWN DRAIN LOCATION (M27 X 2 STRAIGHT THREAD O RING): SIDE NO DRAIN PROVISION ON SHALLOW SUMP
$757.96
OEM #: A4720102313
MATERIAL: COMPOSITE
SUMP LOCATION: FRONT WET
CASTING #: A4720102313
NEW A4720102313 PLASTIC OIL PAN KIT DETROIT DD15 FRONT WET SUMP 47 QUARTS 18 MOUNTING HOLES INCLUDES DRAIN PLUG GASKET INCLUDED
$350.00
OEM #: 4386821
USED USED GTO OEM CUMMINS X15 (4342) OIL PAN 4386821 OIL PAN SUMP LOCATION: FRONT MATERIAL: STEEL CONSTRUCTION: STAMPED SUMP CAPACITY: 11 GAL HIGH, 9 GAL LOW ANGULARITY LIMITS (GRAVITATIONAL HORIZONTAL): 38 DEGREES FRONT DOWN 22 DEGREES REAR DOWN 30 DEGREES FUEL PUMP DOWN 30 DEGREES EXHAUST DOWN UNIQUE CHARACTERISTICS: STUDS ON OIL PAN FLANGE LOCATED AT #2, #5, #28 AND #32 MOUNTING HOLES ON EXHAUST SIDE AND AT #11, #12, #15, #16, #18, #19, #22 AND #23 MOUNTING HOLES ON FUEL PUMP SIDE OF ENGINE REFER TO THE NEW ENGINE BUILD STANDARD FOR D10 HOLE LOCATIONS IN OIL PAN. AEB 46.05 MAY ALSO BE CONSULTED. MAXIMUM WEIGHT LIMIT ON ANY SINGLE STUD IS SEVEN (7) POUNDS. POWER ANGLE: NOT TO EXCEED 5 DEG. AEB 20.17 MIGHT BE CONSULTED FOR MORE DETAILS REGARDING MAX
$400.10
OEM #: 3680894
SUMP LOCATION: FULL
CASTING #: 3680894
NEW BLEM - STRIPPED THREADS FULL SUMP 21 GAL WITH P/U TUBE # 3679714 SAME AS 3680894, 3103453
$649.56
OEM #: A4710108113
MATERIAL: THERMOPLASTIC
CASTING #: NA
NEW FRONT SUMP PLASTIC OIL PAN A4710108113 DETROIT DD13 40 QUART DRAIN PLUG INCLUDED 22 MOUNTING HOLES
OEM #: 5273842
USED USED GTO OEM CUMMINS ISL9 (3664) OIL PAN ASSY 5273842 Oil Pan Sump Style: Deep Sump Location: Front Oil pan Material: Stamped Steel Oil Pan Type: Non-Isolated Pan High Capacity (qt): 20 (18.93 ltr) Pan Low Capacity (qt): 16 Pan Front Up Angularity (Deg): 30 Pan Front Down Angularity (Deg): 30 Pan Side To Side Angularity (Deg): 30 Drain Size: M18 Drain Location: Bottom Position From FFOB (mm): 136.25 Position From CCL (mm): 393.9 Heater Boss Size: M22 X 1.5 - 6H Heater Boss Location: Exhaust Side Position From FFOB (mm): 143.2 Position From CCL (mm): 281.4 Oil Level Sensor Tapping Size (in): 3/8 NPTF Oil Level Sensor Provision: Both Sides Position From FFOB (mm): 143.2 And 712.7 Position Form CCL (mm): 158.5 Required Block Flange (mm): 282 X 883.5 Oil Pan Mounting Holes: 9 mm Thru Holes Oil Pan/Block Mounting Holes: 24 Spacing: Equal, 78.5 mm Oil Pan/Gear Housing Mounting Holes: 4 Spacing: Unequal Oil Pan/Flywheel Housing Mounting Holes: 4 Spacing: Unequal Doweled For Flywheel Housing: No Required Dipstick Calibration: BFOB - Full/Low 0-5 Degree: 65/83 BFOB - Full/Low 8 Degrees: Restricted Use Unique Characteristics: Pan Includes Full Perimeter Clamping Plates
$849.34
OEM #: 3689002
MATERIAL: ALUMINIUM
CASTING #: 3689003
USED CUMMINS OEM ISX12 10 GALLON OIL PAN --- OEM NTO --- LOW HOURS 3689002
$375.24
MATERIAL: STEEL
SUMP LOCATION: FRT
CASTING #: 4386822
USED 10 GALLON PAN
OEM #: 3266568
SUMP LOCATION: CENTER
CASTING #: 4311862
NEW BLEM - STRIPPED THREADS PAN,OIL REPLACES --> 3266185
$700.00
OEM #: 4952770
SUMP LOCATION: REAR
CASTING #: 4905350
USED CUMMINS REAR SUMP OIL PAN FOR ISM11, 8.5 GAL REPLACES--> 3895628, 3896250, 4004590, 4905350
$300.00
OEM #: 4952780
CASTING #: 4952782
USED USED NTO OEM CUMMINS M11 CELECT+ OIL PAN ALTERNATE #'S --> 3892965, 3895630, 3896251, 3896328, 4004859, 4004587, 4905352
$433.45
OEM #: 4952540
SUMP LOCATION: BOTH
CASTING #: 3680530
NEW STEEL OIL PAN CUMMINS ISX FRONT & REAR SUMP 10-12 GALLON
$600.10
OEM #: 2892027
NEW 10 GALLON PAN
OEM #: 4331328
NEW BLEM- STRIPPED THREADS
$750.34
OEM #: 3104436
USED USED GTO OEM CUMMINS QSX15 (2825) CAST ALUMINUM FRONT SUMP OIL PAN 3104436
MATERIAL: ALUMINUM
SUMP LOCATION: FRONT CENTER
CASTING #: 3100781
USED PAN, OIL ALUMINUM FRONT CENTER SUMP
$342.10
OEM #: 5468171
CASTING #: 3694461
NEW BLEM - STRIPPED THREADS OIL PAN - ALUMINUM HIGH CAPACITY CENTER SUMP
OEM #: 4975061
USED USED GTO OEM CUMMINS ISX12 (4875) ENGINE OIL PAN 4975061 STAMPED STEEL FRONT SUMP
$235.10
OEM #: 3012976
SUMP LOCATION: NA
NEW
USED USED GTO OEM CUMMINS ISX12 OIL PAN
OEM #: 277-3004
CASTING #: 277-3004
USED USED GTO CATERPILLAR ALUMINUM, FRONT SUMP C15 OIL PAN 277-3004
